Embossing vs. Debossing: Which Finish Is Right for You?

Embossing raises a design above the surface; debossing presses it into the surface. Choose embossing for bold, visible lift and shelf impact; choose debossing for quiet, protected tactility that holds up through handling. Both techniques rely on matched custom dies and press pressure rather than ink, and both carry similar die setup costs as the primary first-run expense. One important note before you dive in: Packwire offers embossing and debossing exclusively on folding boxes and rigid boxes for orders above 3,000 units. If your run is smaller, digital finishing options give you tactile effects without the die investment.

  • Embossing: Design sits proud of the surface; reads well at a distance and under shelf lighting.
  • Debossing: Design is pressed into the substrate; reads best in-hand and under direct touch.
  • Both: Require custom dies, similar setup costs, and heavier stock for clean results.
  • Packwire availability: Folding and rigid boxes only, 3,000+ units minimum. Digital alternatives recommended for lower quantities.
  • Sustainability note: Blind embossing uses no additional ink and pairs well with FSC-certified paper stocks.

Key Takeaways

Embossing and debossing are both die-based tactile finishes: embossing raises the design above the surface for shelf visibility, while debossing presses it in for durability and restrained elegance.

Point Details
Emboss raises; deboss recesses Embossing lifts design above the surface; debossing presses it in. Choose based on visibility vs. durability goals.
Stock weight is non-negotiable Use 300gsm (130lb cover) or heavier for deep, clean impressions; thinner stock risks tearing or show-through.
Die cost drives first-run expense Setup cost is similar for both techniques; reorders using the same die cost significantly less per unit.
Packwire MOQ is 3,000 units Embossing and debossing on folding and rigid boxes require 3,000+ units; digital finishing is recommended below that threshold.
Always order a physical proof A press sample on your actual substrate is the only reliable way to confirm depth, shadow, and registration before full production.

Table of Contents

What is embossing and how does the process work?

Embossing pushes material upward so the design sits proud of the surrounding surface. The result is a raised relief that catches light, creates shadow, and reads across short distances without any ink at all.

The process starts with your vector artwork, which a die maker uses to engrave a male die (the positive, raised form) and a matching counter die (the female, recessed form). The substrate is sandwiched between the two dies under heat and pressure, and the material is forced upward into the male die's shape. Common die metals are magnesium (cost-effective for simple shapes), brass (sharper detail, longer run life), and copper (premium detail on complex artwork). Brass and copper dies hold finer lines and bevels better over long production runs.

Three main variants exist:

  • Blind emboss: No ink or foil; the raised texture alone carries the design. Clean, minimal, and a strong choice for sustainability-minded brands since it adds no additional materials.
  • Registered emboss: The raised area aligns precisely with printed artwork underneath, so color and texture occupy the same space.
  • Foil emboss: A metallic or pigmented foil is applied to the raised area, combining lift with color or shine. This is the finish you see on luxury fragrance and spirits packaging.

Design rules matter here. Always supply vector files (AI or EPS), keep stroke widths at or above your supplier's minimum (typically 0.5 pt, though confirm with your printer), and leave generous clearance between embossed elements and any fold lines or die-cut edges. Bevel angles on the die affect how shadow reads, so discuss depth and bevel profile with your die maker before finalizing artwork. Coated stocks show emboss detail crisply; uncoated stocks give a softer, more organic lift.

Pro Tip: Request a physical press sample or make-ready proof before approving full production. Emboss depth and shadow read very differently under a trade-show light versus a retail shelf spotlight.

How debossing works and where it excels

Debossing uses the same matched-die principle as embossing, but with reversed orientation: the die presses the design into the substrate rather than lifting it. The result is a recessed impression that sits below the surrounding surface.

The fiber compression that happens during debossing behaves differently from embossing. Rather than stretching material upward, debossing compacts fibers downward, which means the substrate needs enough caliper to absorb that compression without cracking or showing through on the reverse side. Typical depth ranges run from 0.5 mm to 1.5 mm depending on stock weight and die profile.

Common debossing applications include:

  • Minimalist stationery and business cards where a clean, tactile logo is the only decoration.
  • Heavy uncoated stocks (cotton rag, felt-finish boards) where the fiber takes an impression beautifully.
  • Leather goods, where a debossed mark sits protected within the material and resists wear better than a raised embossed mark on the surface.
  • Labels and folding cartons for artisan food, spirits, and personal care brands that want restraint over flash.

Design minimums apply just as strictly as with embossing. Keep counters (the open spaces inside letterforms like "O" or "P") wide enough that they don't fill in under pressure. On cotton papers, debossing produces a soft, pillowy impression; on wood-pulp stocks, the result is crisper but more prone to fiber tear at very fine detail. Avoid debossing on stocks below 300gsm for deep impressions.

  1. Confirm your stock caliper is sufficient for the intended depth.
  2. Check that counters in letterforms are at least as wide as your minimum stroke.
  3. Verify the reverse side of the sheet for show-through before approving.
  4. Request a depth sample at the actual production stock weight.

A practical caution: debossing on thin stock creates show-through on the reverse face, which is a real problem on two-sided business cards or inside-printed box panels. Heavier caliper solves it.

How do embossing and debossing actually compare?

The core difference is directional, but the downstream effects on visibility, durability, and brand perception are worth mapping out clearly.

Visual and tactile contrast. Embossing creates a raised form that catches ambient light and casts a shadow, making it readable from across a retail aisle. Debossing creates a shadow well that reads best when you hold the piece and tilt it toward a light source. Neither requires ink, but both reward good lighting.

Durability. Raised embossed elements can abrade over time, especially on packaging that stacks or ships repeatedly. A debossed mark sits protected within the substrate, which is why it's the preferred finish on leather wallets, book covers, and any packaging that sees heavy handling.

Cost and setup parity. Die costs and setup fees are roughly equivalent for both techniques. The real cost driver is the die itself, not the direction of the impression. Reorders using the same die cost significantly less per unit than the first run.

When each wins:

Finish Best for Avoid when
Embossing Shelf-facing logos, luxury rigid boxes, foil combos Thin stock, high-abrasion shipping
Debossing Minimalist brands, leather, heavy uncoated stock, wallets Very thin paper, fine counters on small type

Both techniques signal premium packaging without adding color, which is why they appear across cosmetics, spirits, stationery, and corporate gifting. The choice between them comes down to whether you want the design to announce itself or reveal itself.

Where are embossing and debossing most commonly used?

The finish you choose should match how and where the package gets seen and touched.

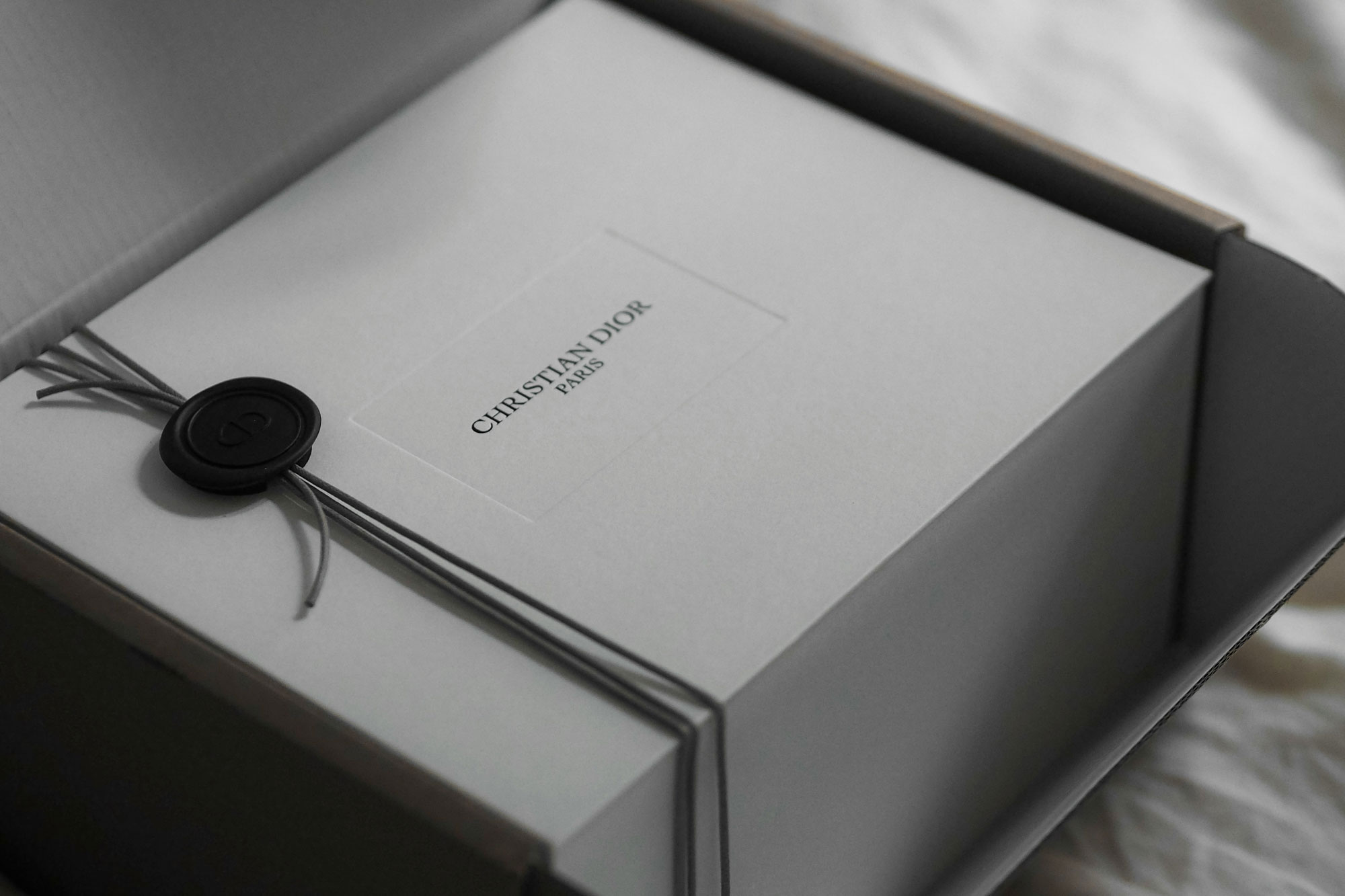

  • Luxury rigid boxes (cosmetics, fragrance, spirits): Emboss plus foil is the dominant combination. The raised metallic logo reads immediately on a retail shelf and photographs well for e-commerce.
  • Artisan food and beverage folding cartons: Deboss on uncoated kraft or felt-finish board. The recessed mark feels handcrafted and aligns with natural or minimal brand identities.
  • Business cards: Debossing holds up better in wallets and cardholders, where a raised emboss can flatten or abrade. A debossed name or logo on a thick cotton card is a tactile statement that lasts.
  • Corporate stationery and annual reports: Blind emboss on the cover communicates quality without color cost.
  • Boutique apparel and accessories: Debossed tags and tissue paper inserts reinforce brand consistency at every touchpoint.
  • Leather goods: Debossing is the industry standard for brand marks on leather because the recessed impression resists wear better than a surface-proud emboss.

For plastics and synthetic substrates, both techniques are possible but require specialized dies and temperature control. Digital alternatives (3D UV coating, textured varnish) are often more practical for short runs on non-paper substrates.

Pro Tip: Think about touch frequency. A package opened once and displayed (a gift box) rewards embossing's visual drama. A package handled daily (a wallet insert, a business card) rewards debossing's durability.

Which materials and artwork rules actually matter?

Getting the substrate and file prep right is where most emboss and deboss projects succeed or fail. Thicker stocks around 300gsm (approximately 130lb cover) hold impressions better and reduce the risk of tearing or show-through. Below that threshold, deep impressions become a gamble.

Paper fiber composition and caliper directly affect how a die impression reads. Long-fiber (cotton rag) papers compress cleanly and hold fine detail. Short-fiber wood-pulp stocks are more prone to tearing at fine counters and tight radii. Coated stocks show crisp, defined edges; uncoated stocks produce softer, more organic impressions. Laminated or wrapped boards (common on rigid box shells) behave differently again: the laminate layer adds rigidity but can delaminate if the impression is too deep or the die temperature is too high.

Grain direction matters more than most designers expect. Embossing or debossing across the grain increases the risk of cracking, especially on heavier boards. Always confirm grain direction with your printer before finalizing the die layout.

Artwork rules:

  • Supply vector files (AI, EPS, or PDF with outlined fonts) at final size.
  • Minimum stroke width: 0.5 pt is a common floor, but confirm with your specific supplier.
  • Keep counters in letterforms wide enough to avoid fill-in under pressure.
  • Maintain at least 3 mm clearance from any fold score, perforation, or die-cut edge.
  • For registered emboss, include registration marks on both the print and emboss files.
  • Font size for legible emboss/deboss: generally 8 pt minimum for body text; larger for fine-detail scripts.

Pro Tip: When combining emboss or deboss with print, plan registration marks on your dieline before artwork is finalized. Discovering a registration conflict after film output costs time and money.

What should you budget for dies, setup, and lead times?

Die setup is the dominant cost on any first run. The die itself (engraved metal plate) is a one-time expense that can be reused for reorders, which is why per-piece cost drops significantly on larger runs and repeat orders.

Typical die costs vary by metal and complexity: magnesium dies are the most affordable entry point for simple shapes; brass and copper dies cost more but hold finer detail and last longer. Multi-level dies (used for sculptural or multi-depth embossing) cost more than single-level dies. Both embossing and debossing dies carry roughly equivalent setup costs, so the technique itself doesn't change your first-run budget much.

Per-piece finishing cost follows a straightforward curve: the die cost is fixed, so spreading it across more units lowers the per-piece burden. A run of 500 units carries a much higher per-piece die cost than a run of 5,000 units using the same die.

Packwire's specific rule: Embossing and debossing are available on folding boxes and rigid boxes for quantities above 3,000 units. Below that threshold, the economics of die setup make conventional emboss and deboss impractical for most budgets.

For runs under 3,000 units, digital finishing alternatives are worth serious consideration:

  • 3D UV coating: Simulates raised texture without a die; no setup cost; allows variable data.
  • Textured spot varnish: Adds tactile contrast at lower cost and shorter lead times.
  • Digital embellishment platforms: Combine multiple effects in a single pass, ideal for short-run personalization.

For more on how digital printing compares to conventional finishing for packaging, that tradeoff is worth reading before you commit to a run size.

North American lead times for conventional emboss and deboss runs typically run 3–5 weeks from approved artwork to delivery, accounting for die manufacture, press make-ready, and finishing. Rush programs exist but add cost.

How do you combine embossing and debossing with other finishes?

Stacking finishes is where packaging goes from good to genuinely memorable, but the sequence and registration planning have to happen before artwork is finalized.

Foil stamping combines readily with embossing to create raised metallic highlights. The typical production sequence is: print first, then foil stamp, then emboss. When foil and emboss share the same die (a process called foil embossing or combination stamping), registration is inherently precise because a single die handles both operations. When foil and emboss use separate dies, registration tolerance becomes a critical spec to confirm with your converter.

Common stacked finish combinations and their visual outcomes:

  • Foil + emboss: Raised metallic highlight; the gold foil packaging standard for luxury cosmetics and spirits. Hot foil stamping packaging combined with a registered emboss is the most premium option in this category.
  • Deboss + spot varnish: Recessed shine; the varnish pools slightly in the impression and catches light differently than the surrounding matte surface.
  • Blind emboss + CMYK print: The raised texture sits over or adjacent to printed color; requires tight registration between print and emboss files.
  • Foil stamping vs. embossing alone: Foil adds color and reflectivity; embossing adds dimension. Combined, they reinforce each other. Separately, foil stamping boxes without emboss is faster and cheaper; embossing without foil is cleaner and more minimal.

Production risks multiply with each added finish. Precision registration is the largest single production risk when combining embossing with print or foil. Specify in your quote who (printer or converter) owns registration responsibility, and always order a physical make-ready proof before approving full production.

Pro Tip: Plan all finishes on your dieline at the start of the project, not after print files are approved. Late-stage finish additions are the most common cause of registration failures and reprints.

How do you decide between embossing and debossing?

Work through these questions in order and you'll have a clear answer before you talk to a printer.

  1. What is your brand goal? High visibility and shelf impact point to embossing. Restraint, minimalism, and tactile discovery point to debossing.
  2. How will the package be handled? Shelf display and gift presentation favor embossing. Daily handling, wallets, and shipping-intensive products favor debossing.
  3. What substrate are you using? Heavy uncoated stock (300gsm+) works well for both. Thin stock rules out deep impressions in either direction.
  4. What is your run size? Above 3,000 units, conventional emboss or deboss is viable. Below that, ask about digital alternatives.
  5. What is your lead time? Conventional runs need 3–5 weeks. Digital finishing can turn around faster.
  6. What is your budget for die setup? If die cost is a barrier, digital textured coatings eliminate it entirely.

Questions to ask your printer before committing:

  • What is your minimum stroke width for this stock?
  • What GSM do you recommend for the impression depth I want?
  • What does the die cost, and does it apply to reorders?
  • Do you offer physical press samples or make-ready proofs?
  • What is your registration tolerance when combining emboss with print or foil?
  • Can you show me a sample on my actual substrate?

If your run is under 3,000 units, ask specifically about 3D UV coating or textured spot varnish as alternatives. These options eliminate die cost, allow personalization, and ship faster.

Numbered decision process:

  1. Narrow by brand goal (visibility vs. restraint).
  2. Confirm substrate and stock weight.
  3. Check MOQ against your run size.
  4. Order a physical proof before approving full production.

How Packwire handles embossing and debossing for custom boxes

Packwire offers embossing and debossing as finishing options on two box types: folding boxes and rigid boxes. Both finishes are available for orders of 3,000 units or more. This threshold reflects the economics of die manufacture: below 3,000 units, the per-piece die cost makes conventional emboss and deboss impractical for most budgets.

For orders below 3,000 units, Packwire recommends digital finishing alternatives. Digital options offer several real advantages at lower quantities:

  • No die cost, so the per-piece price stays manageable on short runs.
  • Faster turnaround than conventional die-based finishing.
  • Variable data capability, useful for personalized packaging or limited-edition runs.
  • No minimum quantity floor for most digital embellishments.

To configure your box and explore finishing options, use Packwire's 3D box configurator to select your box type, dimensions, and artwork. Every order goes through an artwork review before print, so your files are checked for stroke widths, bleed, and registration before production begins. For runs that qualify for embossing or debossing, the configurator guides you through finish selection, and Packwire's team is available to discuss die specs and proof requests.

Pro Tip: If you're ordering embossing or debossing for the first time, request a physical press sample at your target stock weight before approving the full run. It's the single most reliable way to confirm depth, shadow, and registration under real light.

Why tactile finishes still matter more than most brands realize

Most packaging decisions get made on screen, which is exactly the problem. A debossed logo on a 400gsm uncoated board communicates something that a rendered mockup simply cannot: the weight of the material, the depth of the impression, the way the surface changes under your fingertip. That physical experience is what drives the unboxing moment that branded packaging is built around.

What I see consistently is brands underinvesting in tactile finishes because the die cost looks intimidating on a first-run quote. But the math changes quickly at scale. Once the die is made, reorders cost a fraction of the first run, and the finish becomes a permanent brand asset. A blind emboss on a rigid box lid, for example, costs nothing in ink and nothing in additional materials, yet it signals quality in a way that a printed logo at the same size simply doesn't.

The other thing brands miss is the sustainability angle. Blind embossing reduces ink use, and when it's applied to FSC-certified stock, the entire finish story aligns with responsible sourcing. That's a real differentiator for brands whose customers care about materials.

If you're choosing between embossing and debossing for the first time, start with a physical proof. Not a digital mockup. A real press sample on your actual substrate, under the lighting conditions where your customer will first encounter it. That proof will tell you more than any spec sheet.
